Description
You will be first be given a list of nodes to insert into a tree. The resulting trees will not be balanced, complete nor full. After building the tree, you should traverse it and find wether there is a path with a 'winning' Tic-tac-toe game status. There will be either 1 or 0 'Winning' paths in a tree.
If there is a 'Winning' path in a tree, you will have to output the resulting Tic-Tac-Toe grid layout.
If there is not a 'Winning' path in a tree, you will have to output the contents of the tree nodes by traversing the tree in post order traversal.

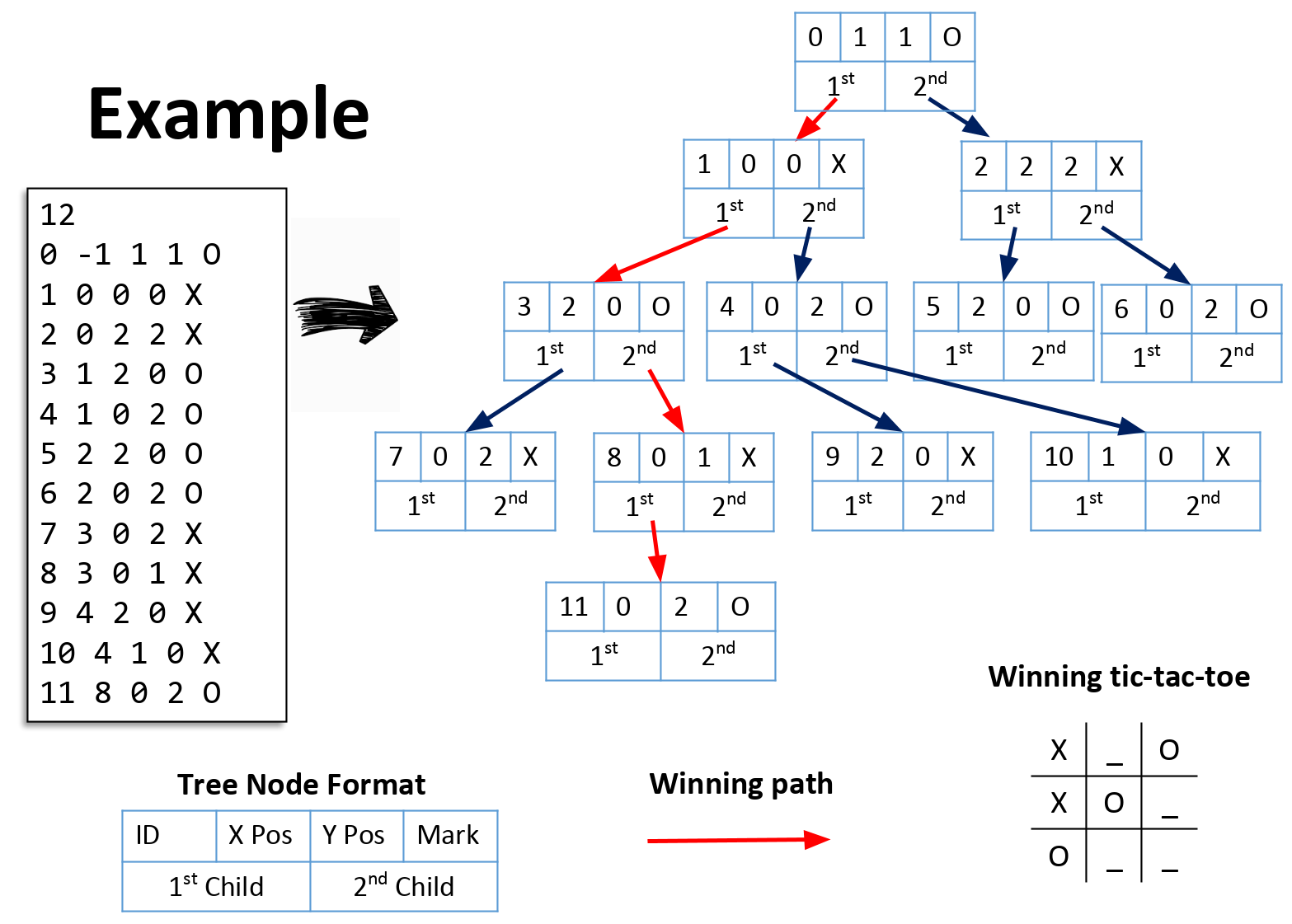

Example 1: tree with a 'winning' path

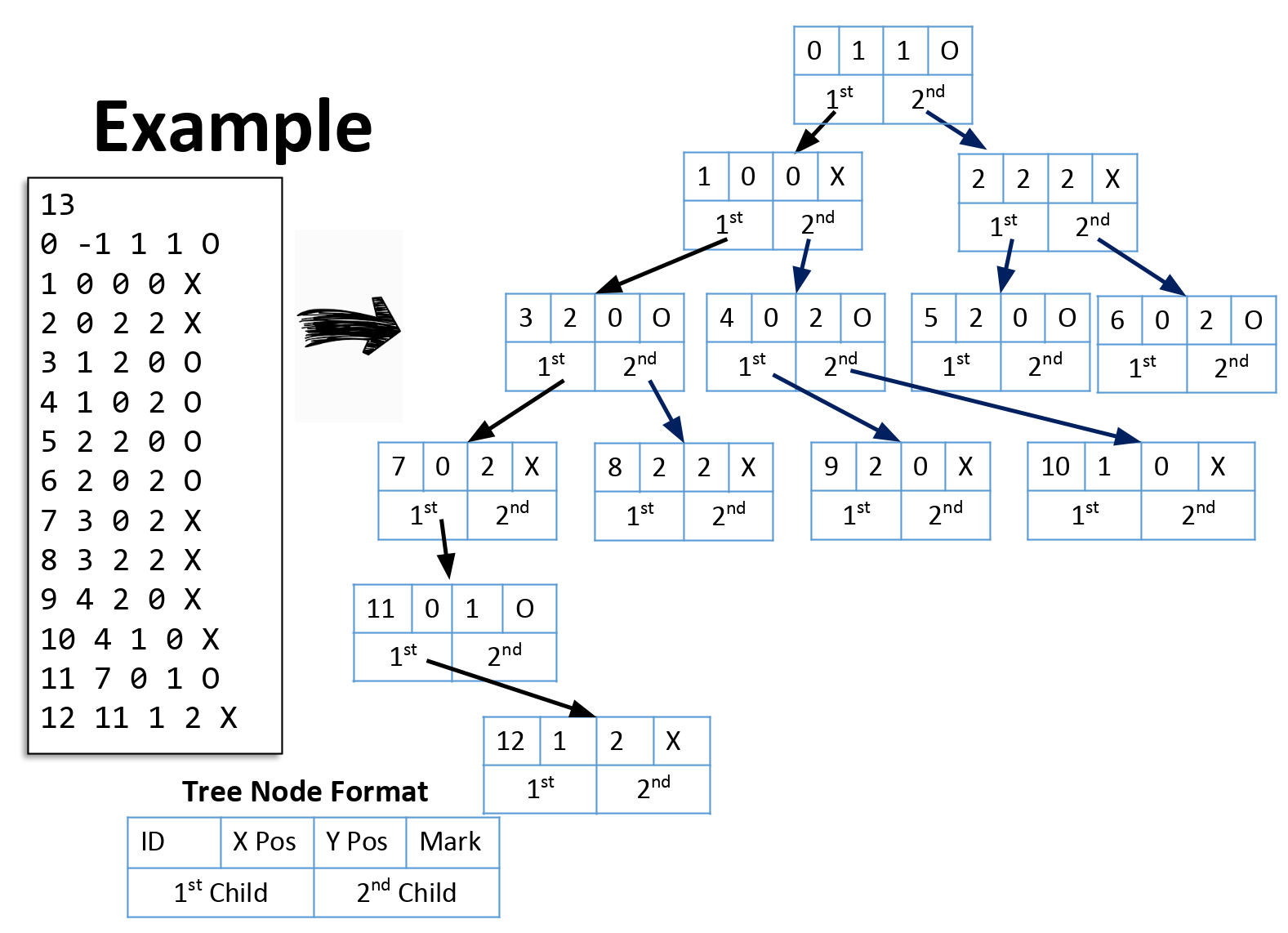

Example 2: Tree without a 'winning' path
Input
- An integer n followed by a new line, indicating the number of nodes to insert in the tree
- N lines indicating the node contents. Each line looks like below:
- Node Id, Parent Id, Position x, position Y, Mark; separated by whitespaces and ending in new lines
Notes:
- Node Id is an integer ranging from 0 to 100.
- Parent Id is an integer ranging from-1 to 99, where -1 is the root.
- Position x and position y are integers ranging from 0 to 2, indicating the tic-tac-toe grid position.
- Mark is a character, either 'O' or 'X' (uppercase)
- The tic-tac-toe gris positions are illustrated below:

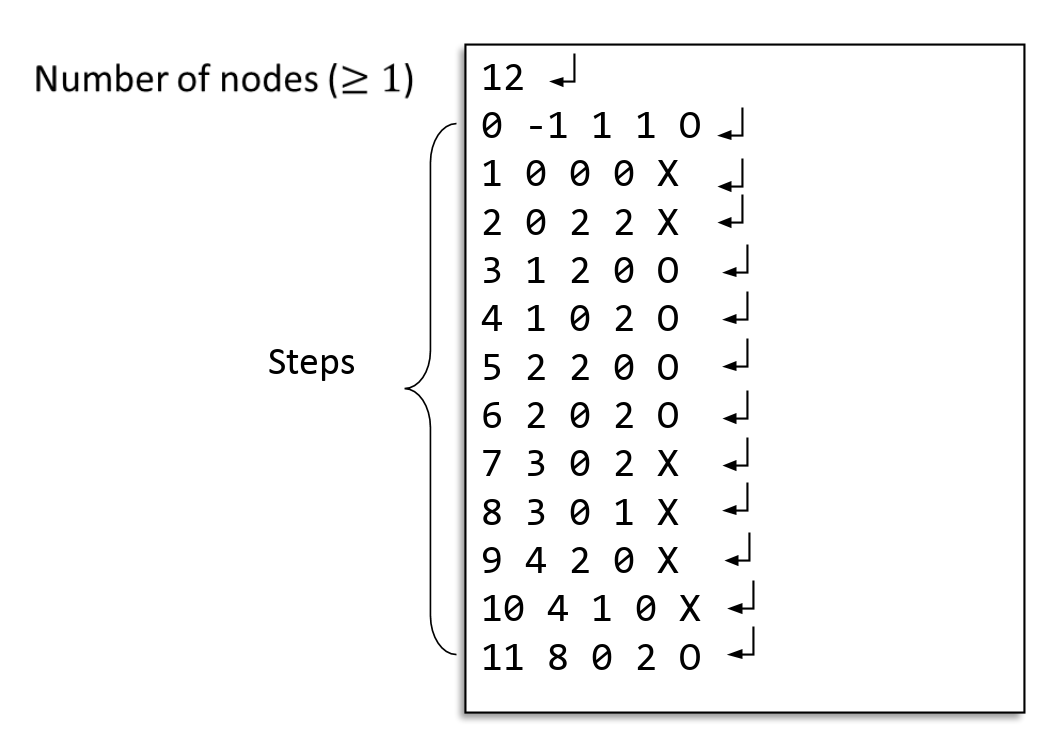

Example 1: Input for tree with a 'winning path'

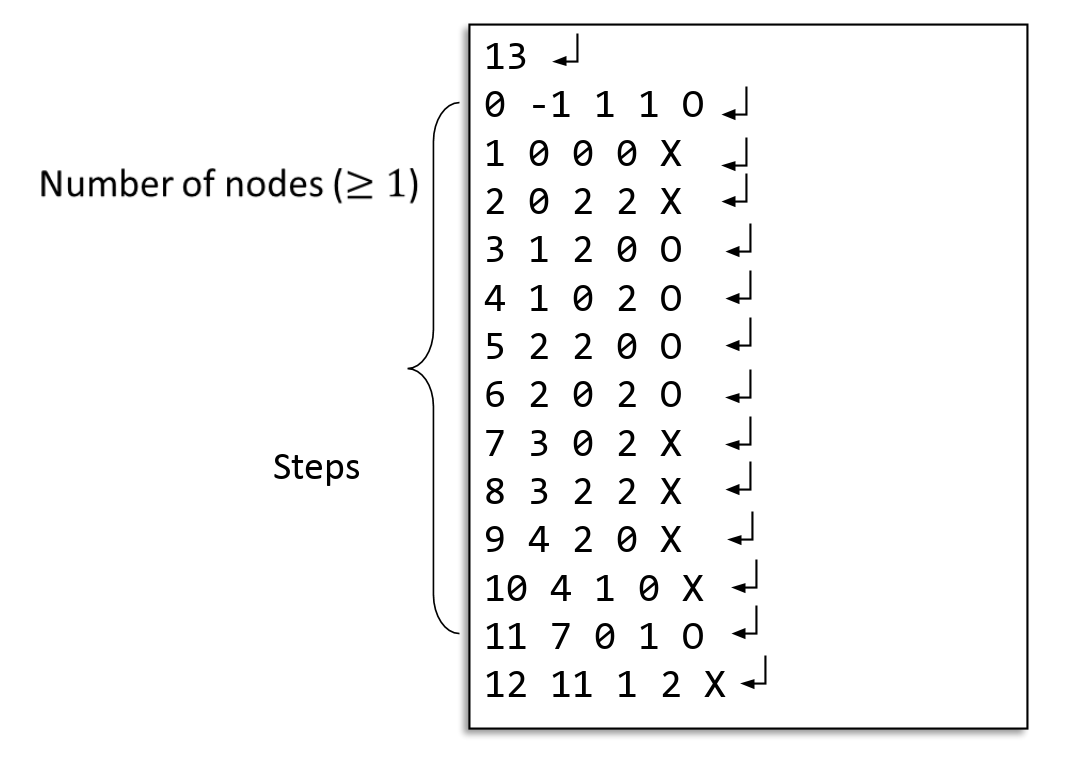

Example 2: Input for tree without a 'winning path'
Output
- If there is a 'winning’ path in the tree, ouput:
- Win’, followed by new line
- The tic-tac-toe grid with the moves on the winning path. Empty squares will be represented with ‘_’ .Positions are separated with whitespaces. There is an endline at the end of each line.
- Else, output:
- ‘Tie’, followed by new line
- For each node, traversed in postorder traversal, output:
- Position x, position y and Mark{O, X}, separated by whitespaces, followed by new line

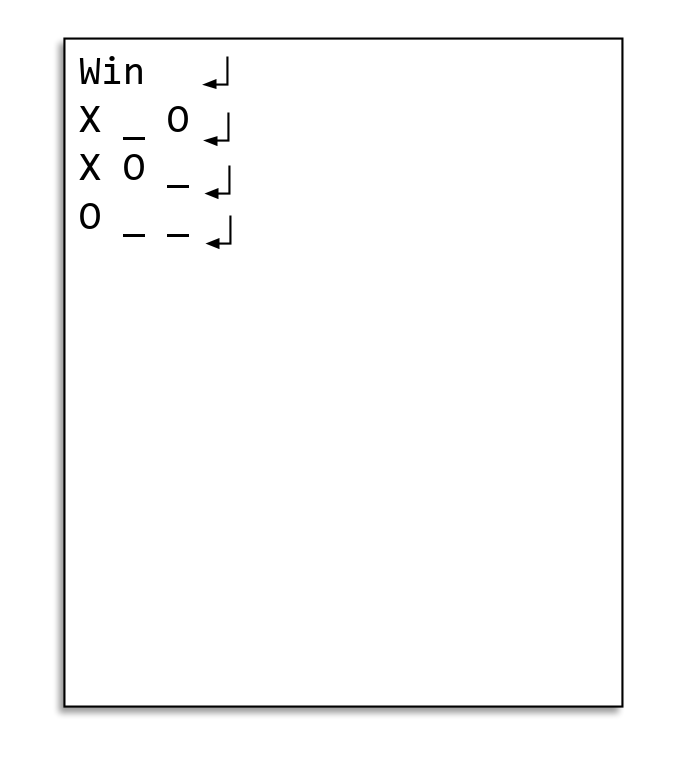

Example 1: Output for tree with a 'winning' path

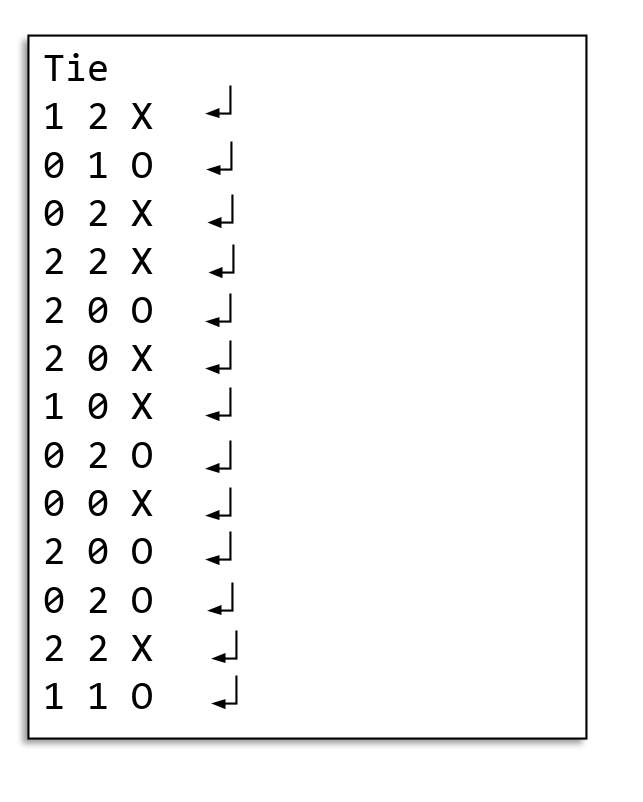

Example 2: Output for tree without a 'winning path
